A cost‑effective antenna alignment tool built by long‑time WISP experts. Delivers premium‑style alignment capability using a high‑precision GNSS compass paired with a high‑end IMU, with a built‑in screen and simple iOS/Android reporting.
WISP Aligner
A cost-effective antenna alignment tool for WISP and telecom installs.
Key Benefits
- Fast on‑tower workflow with a built‑in screen
- Simple closeout reporting from iPhone and Android
- Flexible mounting options for sector, dish, and TwistPort antenna installs
- Reduces install time and avoids return visits
Core Capabilities
- Measures azimuth, tilt, and roll
- Captures position (lat/long) and elevation (AMSL)
- Photo‑supported closeout reporting
- Exports: PDF, CSV, and KML (Google Earth compatible)
- Works with iOS and Android
Technical Specifications
| Azimuth accuracy (dynamic) | 0.3° (GNSS heading) |
|---|---|
| Tilt/Roll accuracy (typ.) | 0.1° |
| Horizontal position (typ.) | < 1.0 m (SBAS, CEP) |
| Vertical position (typ.) | < 1.5 m (SBAS, median) |
| Constellations | GPS, GLONASS, Galileo, BeiDou (BDS), SBAS, QZSS |
| Connectivity | Bluetooth, Wi‑Fi, USB‑C |
| Power | Built‑in Li‑ion battery; up to 9 hours runtime; USB‑C charging; ~6 hour charge time |
| Environmental | Rugged, weather‑resistant enclosure; operational temperature: −40°C to +70°C |
| Reporting outputs | PDF, CSV, KML, photo attachments |
Mounting Options Included
- Sector antenna mounting
- Dish antenna mounting
- RF‑Elements dish with TwistPort adapter mounting
- RF‑Elements TwistPort horn antenna mounting
Scope rail/mount is standard. Scope/optic itself is not included.
What’s in the Box

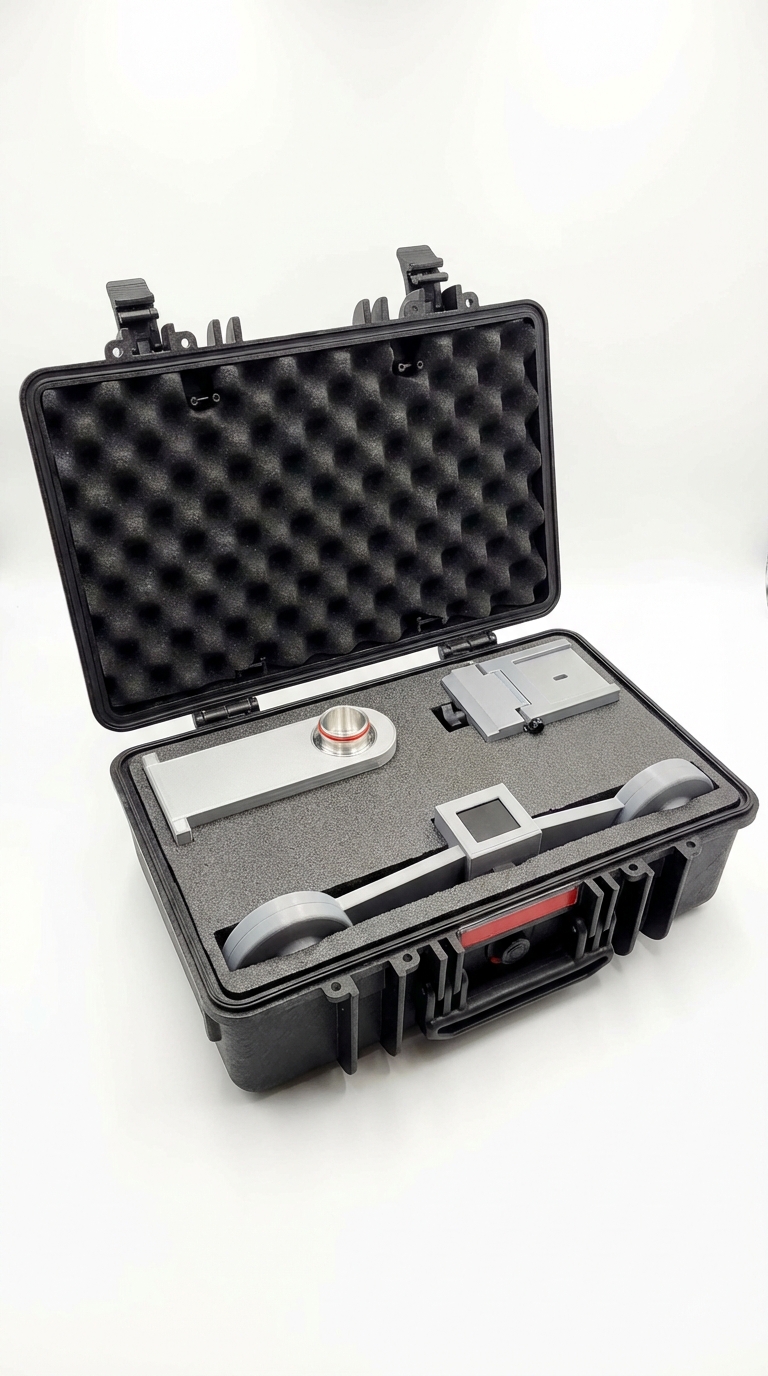

- Aligner unit
- Standard mounting bracket set (sector, dish, and TwistPort mounting)
- Scope rail/mount (scope/optic not included)
- Charging cable (USB‑C)
- Carry case
- Quick start guide
Optional accessory: Parabolic Dish Shroud mounting strap.
Warranty
1‑year standard warranty. Specifications subject to change.
